GBT 18674-2018 8-Strand Mixed Polypropylene And Polyethylene Fishery Ropes

Brand Name : YONGDA

Model Number : 8-strand Mixed Polypropylene and Polyethylene Fishery Ropes

Certification : Class certificates (RINA, BV, CCS, KR, NK, ABS, DNV, LR, IRS, RS, EC, TUV and Mill Certificate)

Place of Origin : Jiangsu, P.R. China

MOQ : ≥1

Price : As per quotation

Payment Terms : T/T, L/C, etc.

Supply Ability : As ordered

Delivery Time : 5-8 work days

Packaging Details : Packed

Standard : GB/T 18674-2018

Material : Polypropylene and of polyethylene

Size : Dia: 6-72mm

Construction : 8-strand braided

Type : Knit

Test : Destructive and Tension Test

Certificates : RINA, BV, CCS, KR, NK, ABS, DNV, LR, RS, IRS, EC, TUV and Mill Certificate

Colour : White, green,yellow or as your needs

Application : Krill trawl net, Marine ranch super - large wind and wave cage

Advantages : lightweight, abrasion resistant, thermally bondable and comfortable, resistant to sunlight, soil and staining, resistant to deterioration from chemicals, perspiration, mildew, rot and weather

Contact Now

GBT 18674-2018 8-strand Mixed Polypropylene and Polyethylene Fishery Ropes

Description:

GBT 18674-2018 8-strand Mixed Polypropylene and Polyethylene Fishery Ropes is constructed of four S-twist strands and four Z-strands arranged so that S-twist strands alternate(individually or in pairs) with Z-twist strands(individually or in pairs).It is made up of bi-component fibres made of a blend during extrusion of polypropylene and of polyethylene,with a minimum of 15 % and a maximum of 50 % of polyethylene. It has strong, lightweight, abrasion resistant, thermally bondable and comfortable property. It is also resistant to sunlight, soil and staining,quick drying properties and able to provide a good bulk and cover. GBT 18674-2018 8-strand Mixed Polypropylene and Polyethylene Fishery Ropes can be widely used in Krill trawl net, Marine ranch super - large wind and wave cage.

Main Technical Specifications:

1.Standard: GB/T 18674-2018

2.Material: Polypropylene and of polyethylene

3.Diameter: 6mm to 72mm

4.Construction: 8-strand braided

5.Type: Knit

6.Test: Destructive and Tension test

7.Classification Certificates: RINA ,BV ,CCS ,CR ,NK ,ABS ,DNV ,LR and Mill Certificate

8.Color: White, green,yellow or as your needs

9.Application: Krill trawl net, Marine ranch super - large wind and wave cage

10.Advantages: lightweight, abrasion resistant, thermally bondable and comfortable, resistant to sunlight, soil and staining, resistant to deterioration from chemicals, perspiration, mildew, rot and weather

Main Technical Parameters:

Linear density and minimum breaking force of

GBT 18674-2018 8-strand Mixed Polypropylene and Polyethylene Fishery Ropes

Reference NO.
mm		 Linear density Minimum breaking strength kN
Nominal
ktex		 Tolerance
%		 Superior Product Top Qualified Product Qualified Product
6 16.3 ±10 6.90 6.55 6.21
8 29.0 12.1 11.5 10.9
10 45.3 ±8 18.8 17.8 16.9
12 65.2 26.9 25.6 22.8
14 88.8 36.4 34.6 30.9
16 116 ±5 47.2 44.8 40.1
18 147 59.3 56.3 50.4
20 181 72.8 69.2 61.8
22 219 87.4 83.0 74.3
24 261 104 98.8 88.4
26 306 121 115 103
28 355 139 132 118
30 408 158 150 134
32 464 179 170 152
36 587 224 213 190
40 725 274 260 233
44 877 327 310 278
48 1040 385 366 327
52 1220 448 425 380
56 1420 514 488 437
60 1630 583 554 495
64 1860 657 624 558
68 2100 737 700 626
72 2350 820 779 697

1.The reference number corresponds to the approximate diameter, in millimetres.

2.The linear density, in kilotex, corresponds to the net mass per length of the rope, expressed in grams per metre or in kilograms per kilometre.

3. The breaking forces relate to new, dry ropes.

4.When the rope fracture position including splice eye,the minimum breaking strength should be reduced 10%.

5. A force determined by the test methods specified in GB/T 8834 is not necessarily an accurate indication of the force at which that rope might break in other circumstances and situations. The type and quality of terminations, the rate of force application, prior conditioning and previous force applications to the rope can significantly influence the breaking force. A rope bent around a post, capstan, pulley or sheave may break at a significantly lower force. A knot or other distortion in a rope may significantly reduce the breaking force.

Drawing of GBT 18674-2018 8-strand Mixed Polypropylene and Polyethylene Fishery Ropes:

GBT 18674-2018 8-Strand Mixed Polypropylene And Polyethylene Fishery Ropes

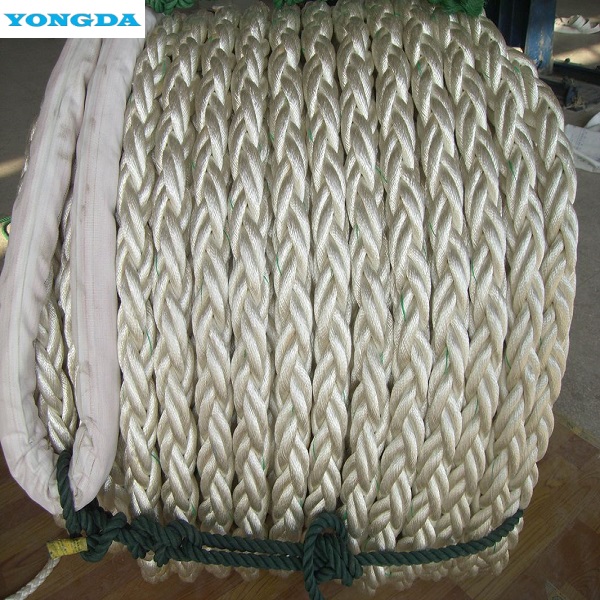

Product Photo of GBT 18674-2018 8-strand Mixed Polypropylene and Polyethylene Fishery Ropes:

GBT 18674-2018 8-Strand Mixed Polypropylene And Polyethylene Fishery Ropes

GBT 18674-2018 8-Strand Mixed Polypropylene And Polyethylene Fishery Ropes
